Which dimensions should I confirm for BK 76/45 Biconical?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

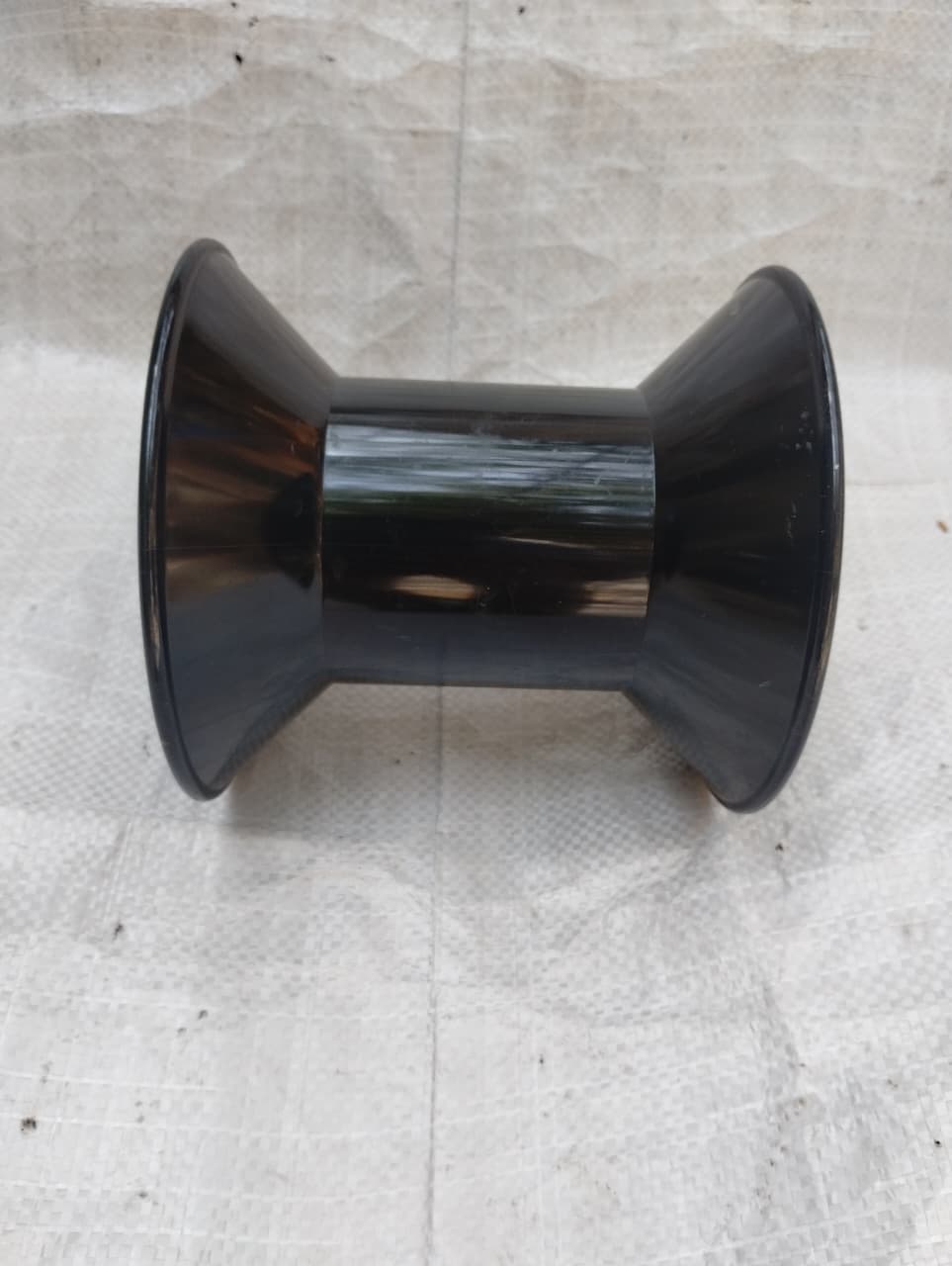

BK 76/45 Biconical
Biconical series spool for specialized technical applications.
Specifications
- Size: BK 76/45
- Flange Dia: 62.7mm
- Barrel Dia: 44mm
- Traverse: 63mm
- Overall: 86mm
- Bore: 16.1mm
Application guidance
Biconical bobbins for cross-wound wire packages and applications requiring angled package geometry.
Buyer questions
Can I request a quotation for BK 76/45 Biconical?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether BK 76/45 Biconical suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
