Which dimensions should I confirm for Cylindrical Reels Type 200?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

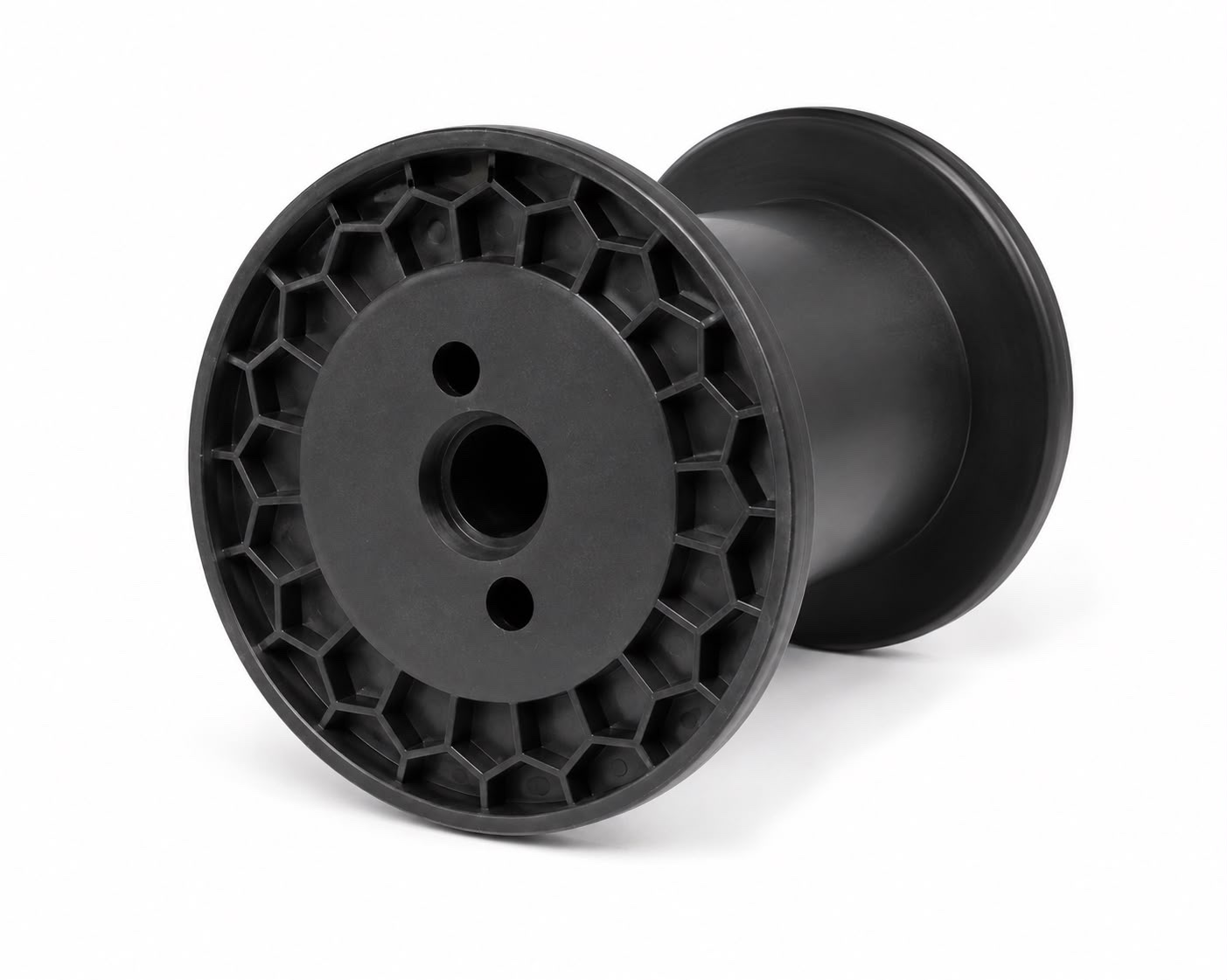

Cylindrical Reels Type 200
Extra large Cylindrical Reels spool for industrial applications.
Specifications
- Ref. No: S-12
- Flange Dia: 200mm (7.87 inch)
- Barrel Dia: 125mm (4.92 inch)
- Traverse: 160mm (6.30 inch)
- Overall Width: 200mm (7.87 inch)
- Bore: 22mm (0.87 inch) / 32mm (1.25 inch)
- Weight Capacity: 12kg (26.45 lbs)
Application guidance
Cylindrical bobbins and flanged reels for winding applications that require a straight-sided barrel and defined traverse.
Buyer questions
Can I request a quotation for Cylindrical Reels Type 200?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether Cylindrical Reels Type 200 suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
