Which dimensions should I confirm for Cylindrical Reels Type 80?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

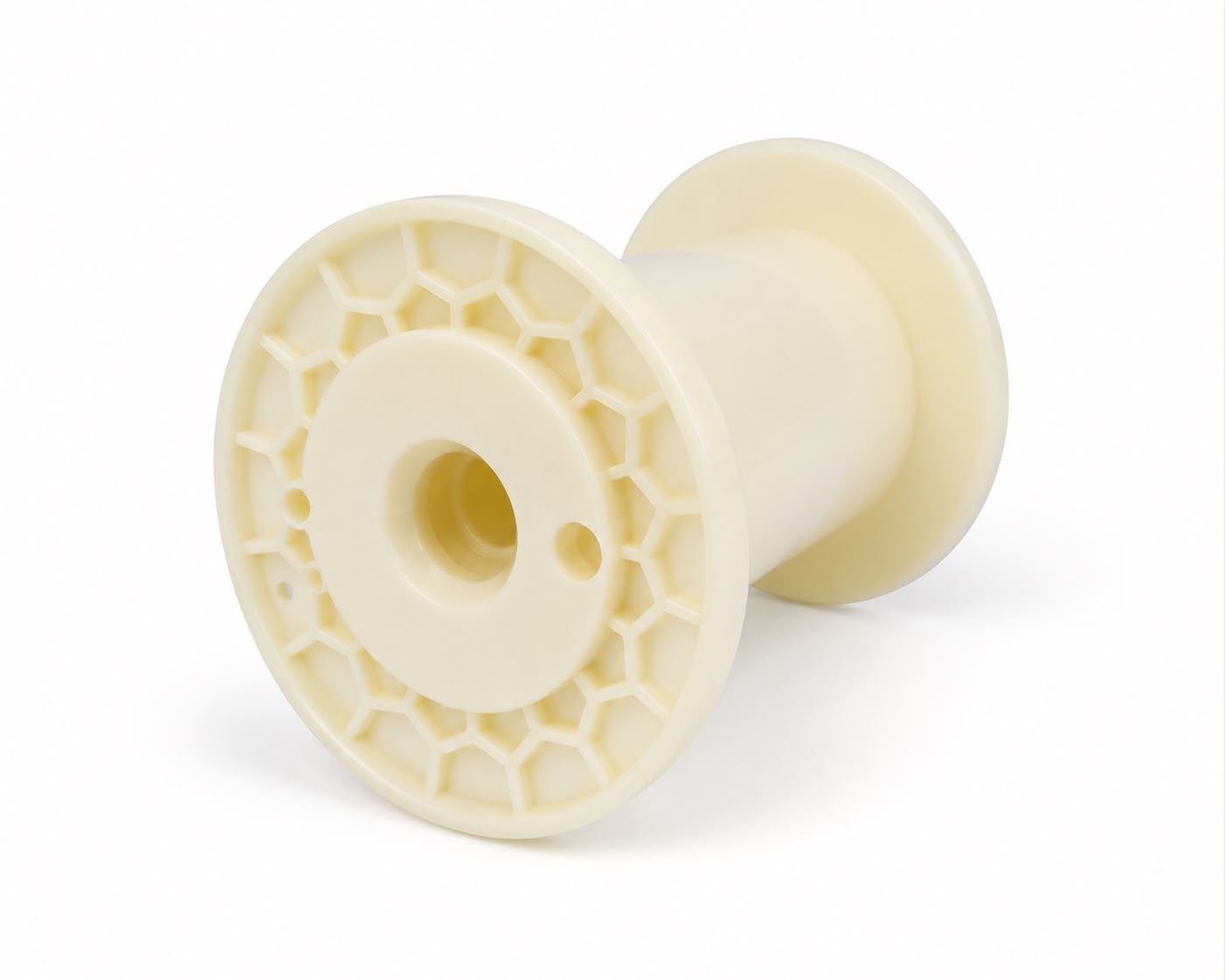

Cylindrical Reels Type 80
Compact Cylindrical Reels standard spool for cable and wire applications.
Specifications
- Ref. No: S-1
- Flange Dia: 80mm (3.15 inch)
- Barrel Dia: 50mm (1.97 inch)
- Traverse: 64mm (2.52 inch)
- Overall Width: 80mm (3.15 inch)
- Bore: 16mm (0.63 inch)
- Weight Capacity: 0.9kg (2.00 lbs)
Application guidance
Cylindrical bobbins and flanged reels for winding applications that require a straight-sided barrel and defined traverse.
Buyer questions
Can I request a quotation for Cylindrical Reels Type 80?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether Cylindrical Reels Type 80 suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
