Which dimensions should I confirm for EP-1 EDM Wire Reel?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

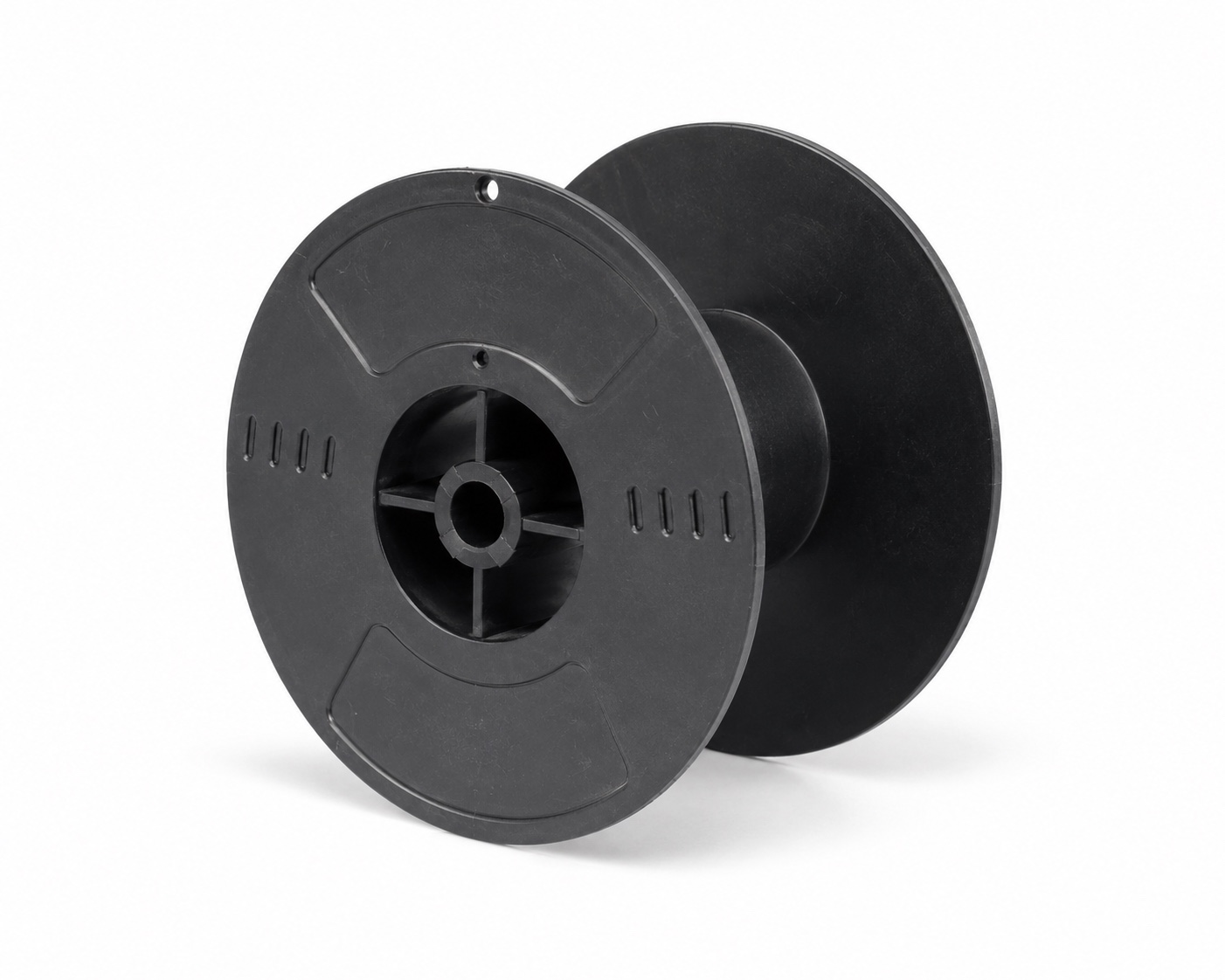

EP-1 EDM Wire Reel
Plastic reel suitable for EDM wire applications. Precision manufactured for electrical discharge machining.
Specifications
- Flange Dia (d1): 130(5.12)mm
- Barrel Dia (d2): 60(2.36)mm
- Traverse (L2): 28(1.10)mm
- Overall (L1): 36(1.42)mm
- Bore (d4): 12.5(0.5)mm
- Weight Capacity: 1.2(2.65)kg
Application guidance
Precision reels for electrical-discharge-machining wire packages and compatible winding or pay-off equipment.
Buyer questions
Can I request a quotation for EP-1 EDM Wire Reel?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether EP-1 EDM Wire Reel suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
