Which dimensions should I confirm for EP-5 EDM Wire Reel?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

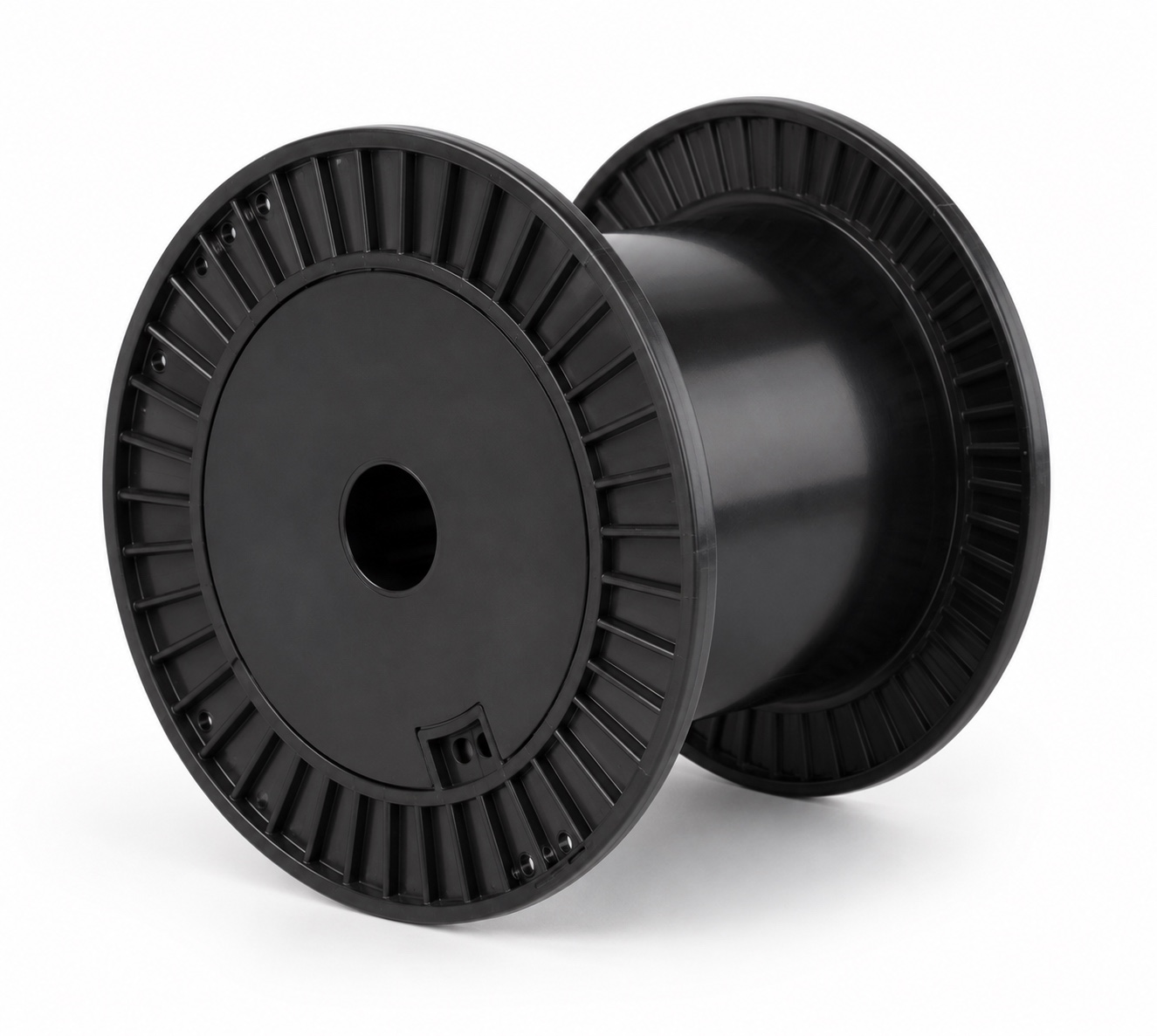

EP-5 EDM Wire Reel
Medium capacity EDM wire reel for precision machining applications.
Specifications
- Flange Dia (d1): 160(6.3)mm
- Barrel Dia (d2): 90(3.54)mm
- Traverse (L2): 90(3.54)mm
- Overall (L1): 112(4.41)mm
- Bore (d4): 22(0.87)mm
- Weight Capacity: 5.0(11.0)kg
Application guidance
Precision reels for electrical-discharge-machining wire packages and compatible winding or pay-off equipment.
Buyer questions
Can I request a quotation for EP-5 EDM Wire Reel?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether EP-5 EDM Wire Reel suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
