Which dimensions should I confirm for ISI 10" Reel?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

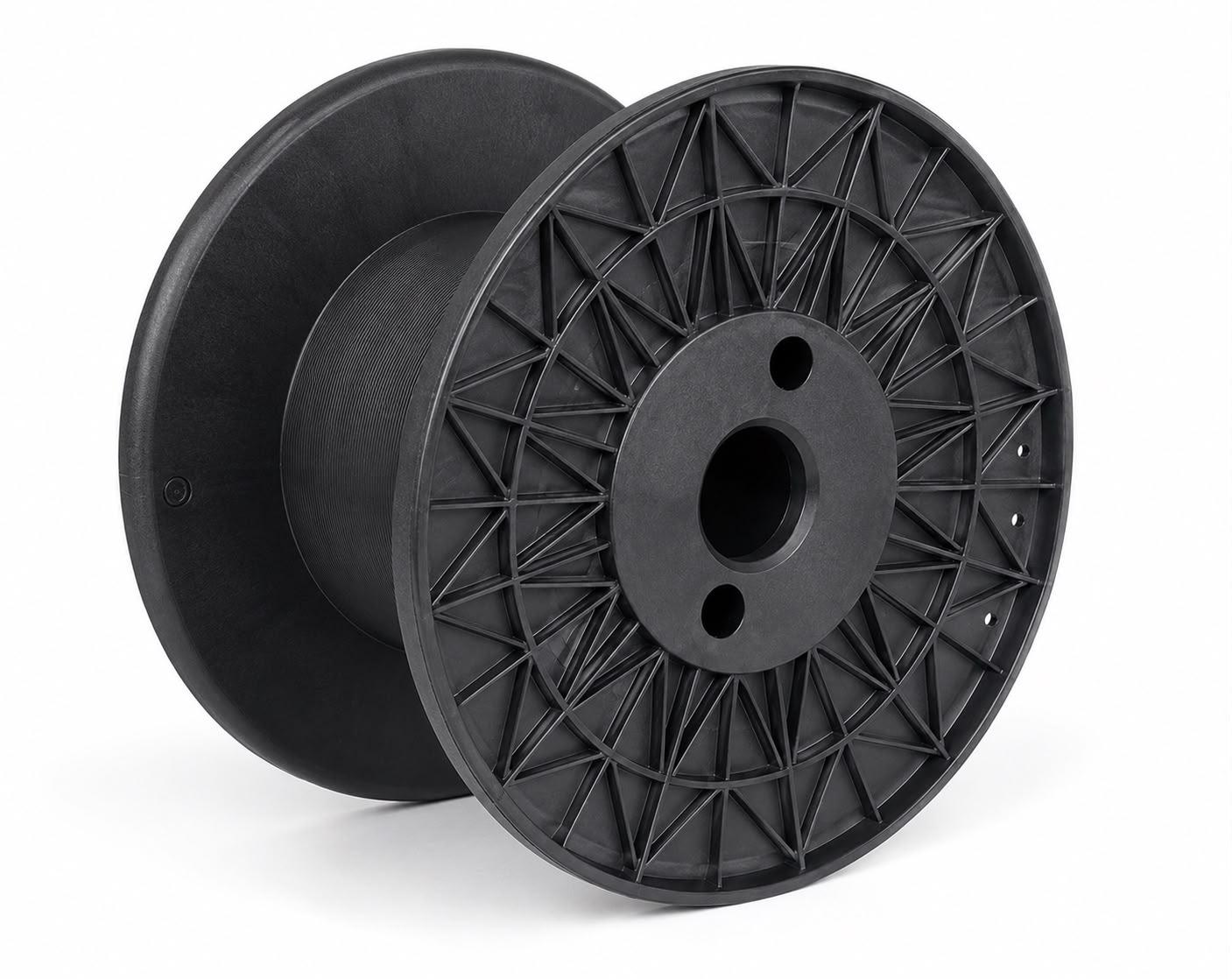

ISI 10" Reel
ISI standard 10 inch reel for high capacity wire winding.
Specifications
- Size: 10"
- Flange Dia (d1): 260mm
- Barrel Dia (d2): 108mm
- Traverse (L2): 175mm
- Overall (L1): 209mm
- Bore (d4): 41mm
Application guidance
Numbered reel sizes for cable and wire applications that reference ISI-format dimensions.
Buyer questions
Can I request a quotation for ISI 10" Reel?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether ISI 10" Reel suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
