Which dimensions should I confirm for ISI 6" Reel?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

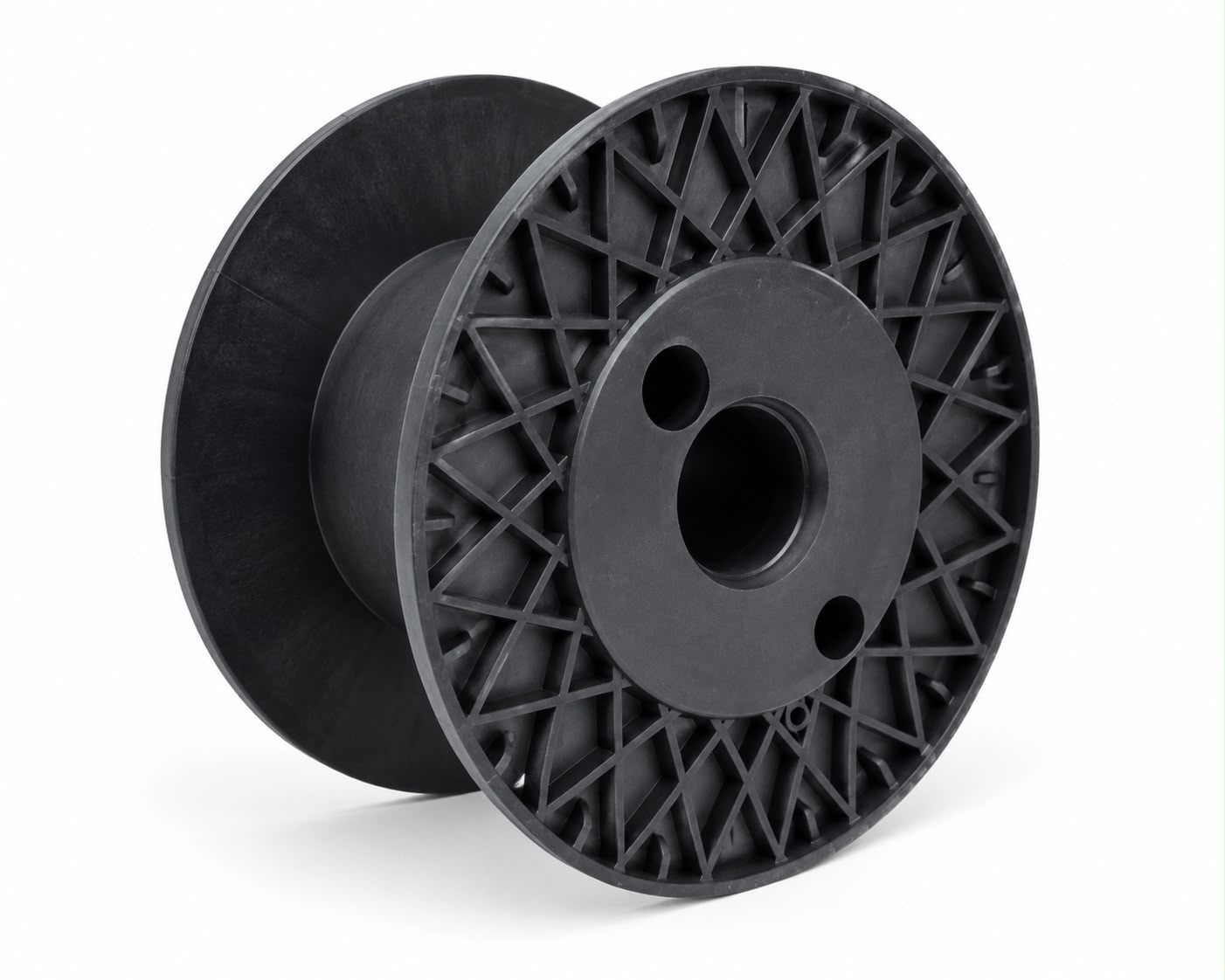

ISI 6" Reel
ISI standard 6 inch reel for medium capacity applications.
Specifications
- Size: 6"
- Flange Dia (d1): 160mm
- Barrel Dia (d2): 85mm
- Traverse (L2): 101mm
- Overall (L1): 123mm
- Bore (d4): 36.2mm
Application guidance
Numbered reel sizes for cable and wire applications that reference ISI-format dimensions.
Buyer questions
Can I request a quotation for ISI 6" Reel?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether ISI 6" Reel suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
