Which dimensions should I confirm for PF/TC/800 ABS Reel?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

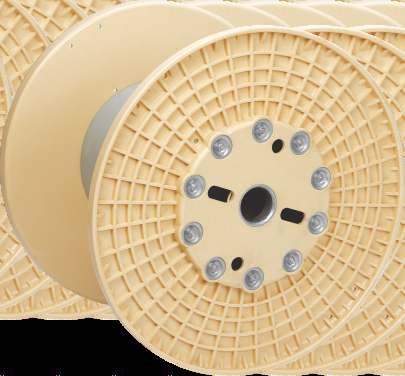

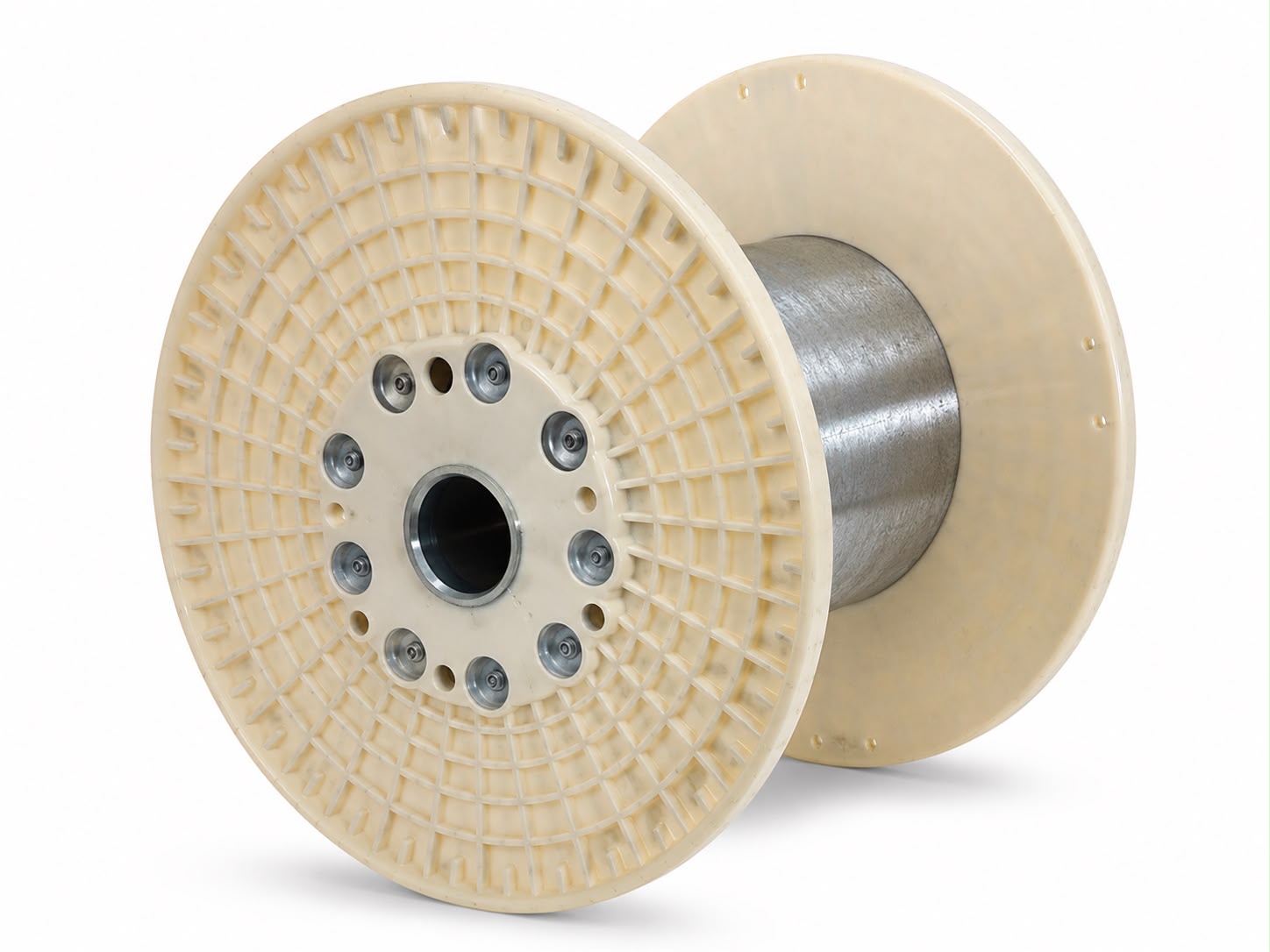

PF/TC/800 ABS Reel
High performance ABS reel for the cable industry. Extra large for maximum capacity.
Specifications
- Flange Dia (d1): 800mm (31.49")
- Barrel Dia (d2): 400mm (15.74")
- Bore (d4): 80mm (3.15")
- Traverse (l2): 400mm (15.74")
- Overall (l1): 480mm (18.90")
- Flange Thickness (ft): 40mm (1.57")
Application guidance
Reusable flange-and-barrel reel formats for cable production and delivery where dimensional consistency and handling matter.
Buyer questions
Can I request a quotation for PF/TC/800 ABS Reel?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether PF/TC/800 ABS Reel suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
