Which dimensions should I confirm for PT-1 Tapered Bobbin?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

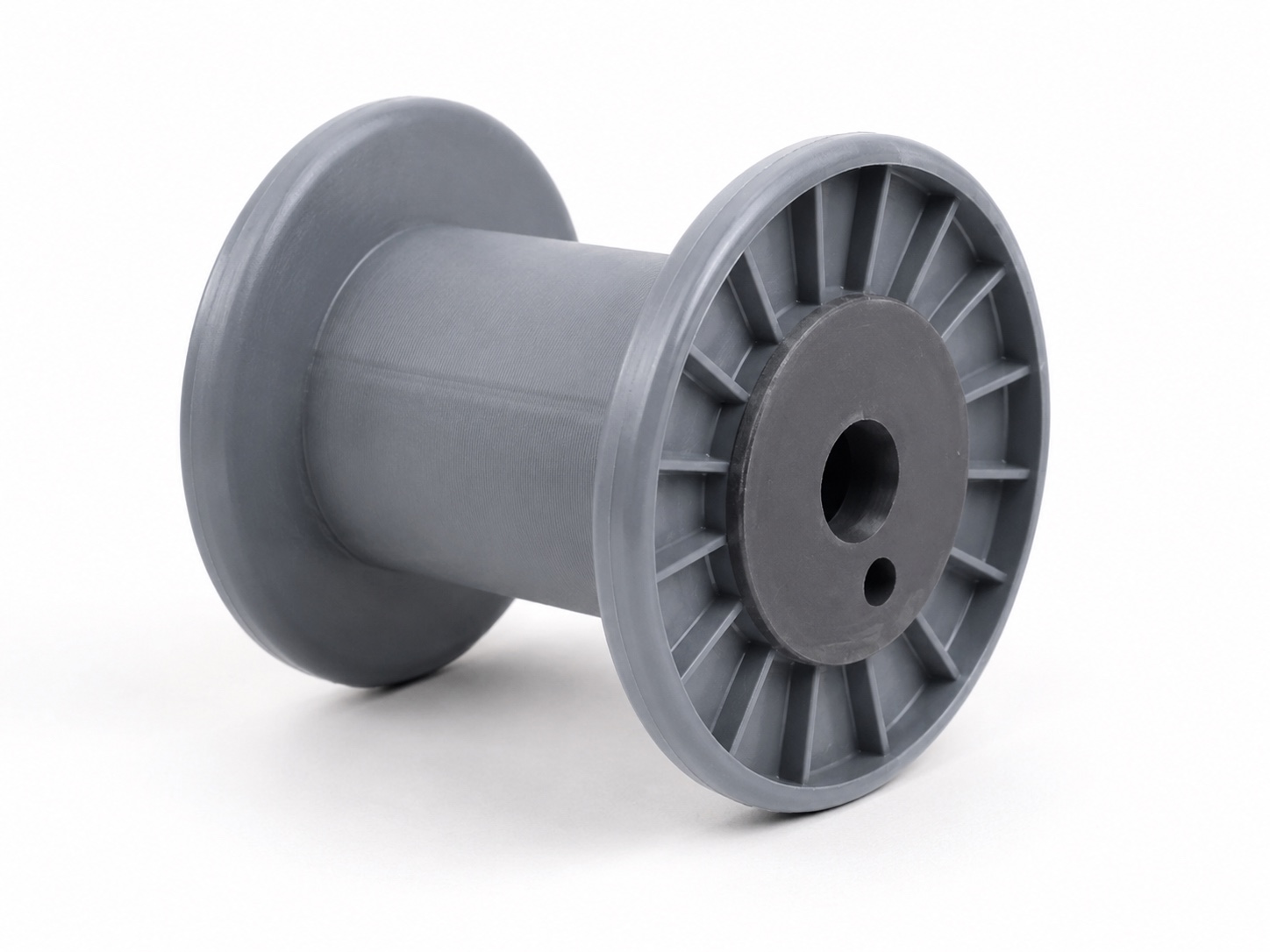

PT-1 Tapered Bobbin
DIN 46383 / IEC 264-3 compliant plastic taper reel. Available in P.P, A.B.S and P.S in standard colors.
Specifications
- Ref. No: PT-1
- Flange Dia: 93.5/103mm (3.68/4.06 inch)
- Barrel Dia: 54/60mm (2.13/2.36 inch)
- Traverse: 98mm (3.85 inch)
- Overall Width: 119mm (4.68 inch)
- Bore: 16mm (0.63 inch)
- Weight Capacity: 1kg (2.20 lbs)
Application guidance
Plastic taper reels for cable and wire winding, with multiple flange, barrel, bore and capacity combinations across the PT range.
Buyer questions
Can I request a quotation for PT-1 Tapered Bobbin?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether PT-1 Tapered Bobbin suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
