Which dimensions should I confirm for PT-200 Tapered Bobbin?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

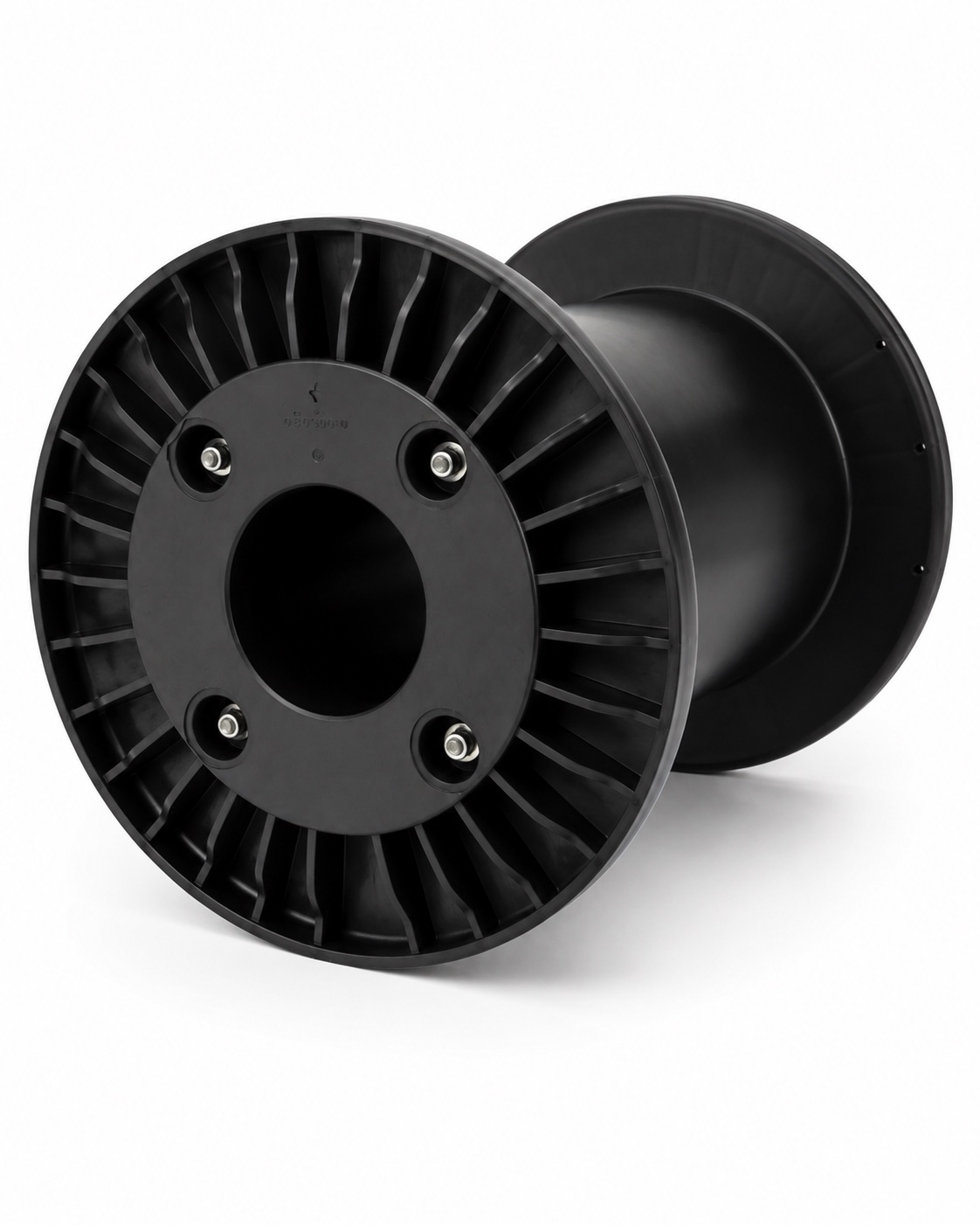

PT-200 Tapered Bobbin
Extra-large capacity tapered bobbin with tie rod assembly for heavy industrial cable production. Available in PP.
Specifications
- Ref. No: PT-200
- Flange Dia: 369/395mm (14.53/15.55 inch)
- Barrel Dia: 221.4/246.4mm (8.72/9.70 inch)
- Traverse: 521mm (20.51 inch)
- Overall Width: 617mm (24.29 inch)
- Bore: 100mm (3.94 inch)
- Weight Capacity: 200kg (440.9 lbs)
Application guidance
Plastic taper reels for cable and wire winding, with multiple flange, barrel, bore and capacity combinations across the PT range.
Buyer questions
Can I request a quotation for PT-200 Tapered Bobbin?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether PT-200 Tapered Bobbin suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
