Which dimensions should I confirm for PT-25 Tapered Bobbin?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

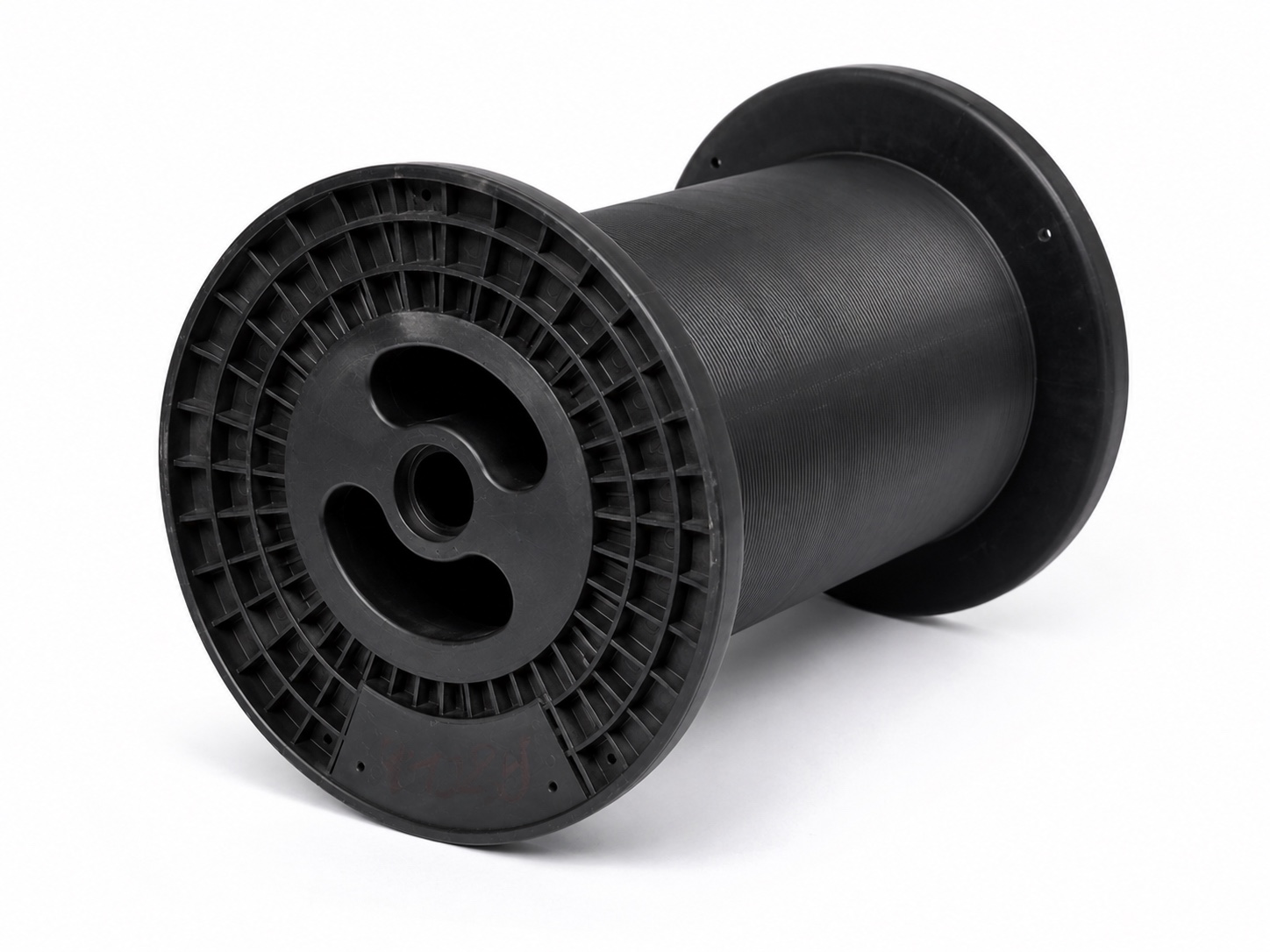

PT-25 Tapered Bobbin
Industrial grade tapered bobbin for heavy-duty cable production.
Specifications
- Ref. No: PT-25
- Flange Dia: 215/230mm (8.46/9.05 inch)
- Barrel Dia: 110/130mm (4.33/5.12 inch)
- Traverse: 250mm (9.84 inch)
- Overall Width: 275mm (10.82 inch)
- Bore: 30mm (1.18 inch)
- Weight Capacity: 25kg (55.0 lbs)
Application guidance
Plastic taper reels for cable and wire winding, with multiple flange, barrel, bore and capacity combinations across the PT range.
Buyer questions
Can I request a quotation for PT-25 Tapered Bobbin?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether PT-25 Tapered Bobbin suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
