Which dimensions should I confirm for SD100 Welding Wire Spool?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

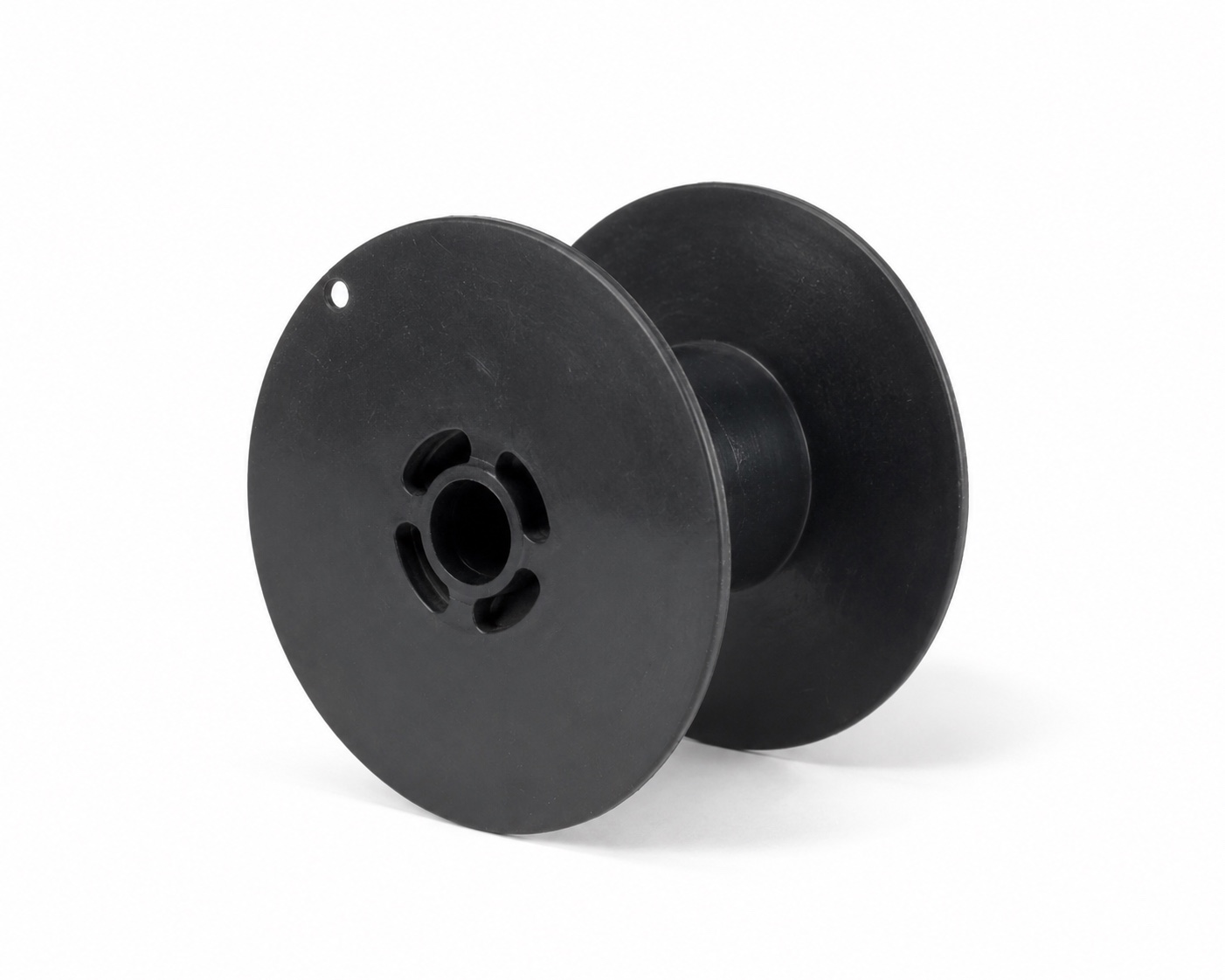

SD100 Welding Wire Spool
DIN 8559 compliant welding wire spool. Available in A.B.S / H.I.P.S / Polypropylene quality. General colors are cream and black, other colors available on request.
Specifications
- Flange Dia (d1): 100mm
- Barrel Dia (d2): 38mm
- Length: 45mm
- Traverse (L2): 38.5mm
- Bore (d4): 16.5mm
- Winding Capacity: 1.5 Kgs
- Weight of Bobbin: 50 gms
Application guidance

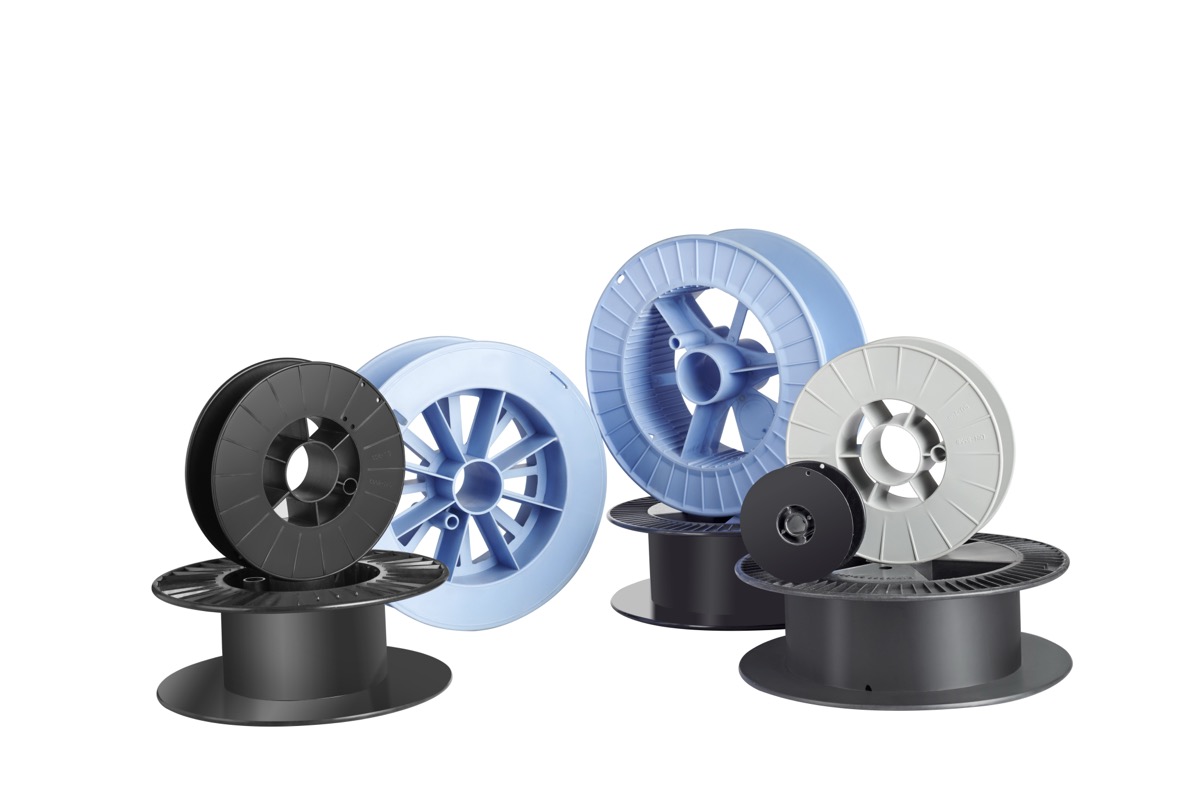

Plastic spools for welding-wire storage and controlled dispensing, available across compact and industrial-capacity formats.
Buyer questions
Can I request a quotation for SD100 Welding Wire Spool?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether SD100 Welding Wire Spool suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
