Which dimensions should I confirm for SD200 Welding Wire Spool?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

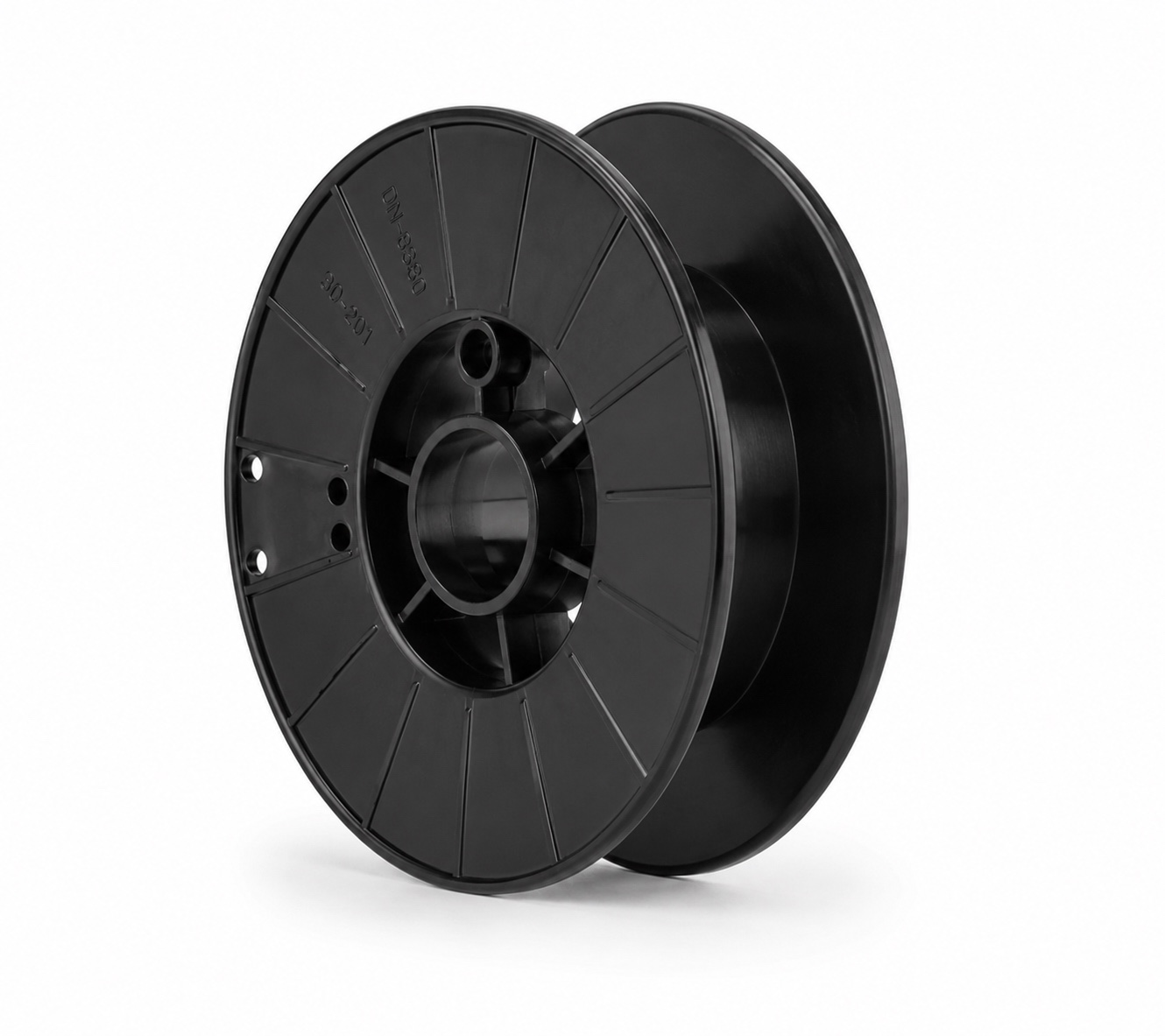

SD200 Welding Wire Spool
Medium capacity welding wire spool for industrial applications. Available in A.B.S / H.I.P.S / Polypropylene quality.
Specifications
- Flange Dia (d1): 200mm
- Barrel Dia (d2): 105mm
- Length: 55mm
- Traverse (L2): 45mm
- Bore (d4): 51.5mm
- Winding Capacity: 5 kgs
- Weight of Bobbin: 260 gms
Application guidance
Plastic spools for welding-wire storage and controlled dispensing, available across compact and industrial-capacity formats.
Buyer questions
Can I request a quotation for SD200 Welding Wire Spool?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether SD200 Welding Wire Spool suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
