Which dimensions should I confirm for 22" Super Tough Reel - 345kg?
Confirm flange diameter, barrel diameter, bore, traverse and overall width against the winding or pay-off equipment.

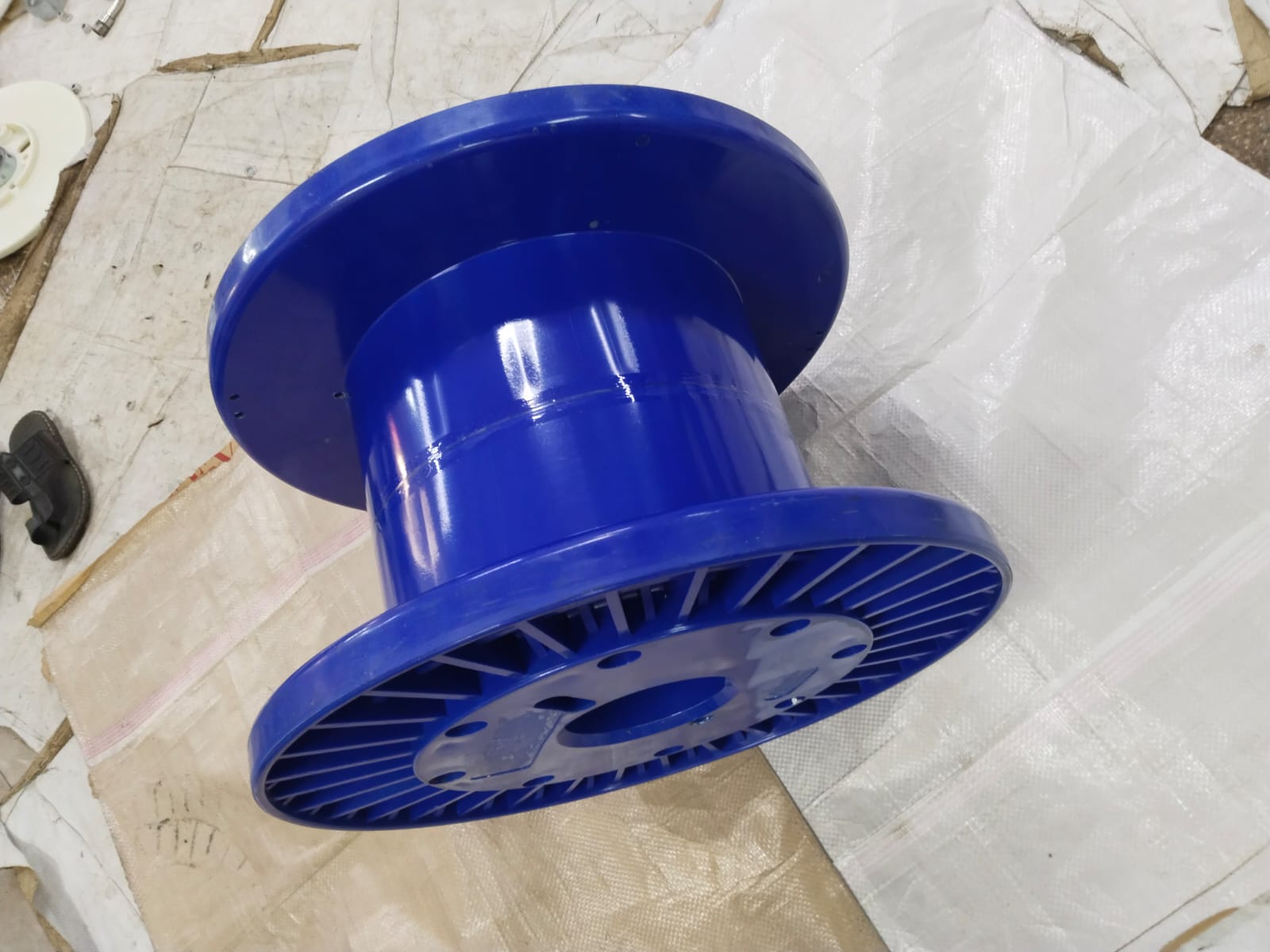

22" Super Tough Reel - 345kg
High performance ABS reel designed for run speeds up to 3000rpm. One-third the weight of equivalent mild steel reels. Ideal for wire drawing, bunching, stranding and transportation.
Specifications
- Material: ABS
- Flange Dia: 22" (560mm)
- Barrel Dia: 14" (355mm)
- Bore: 5" (127mm)
- Traverse: 15.00" (381mm)
- Winding Volume: 3391 cu.inch / 55547 c.c
- Winding Weight: 345 kg
Application guidance
High-strength plastic reel formats intended for demanding cable winding, handling and delivery requirements.
Buyer questions
Can I request a quotation for 22" Super Tough Reel - 345kg?
Yes. Include quantity, application, material preference and any dimensional changes with the enquiry.
How do I check whether 22" Super Tough Reel - 345kg suits my application?
Compare the listed specifications with the equipment and send the wire or cable type, package weight and operating requirements for application matching.
